The Victor "Rigid Arm": "On This Day in Phonographic History..."


phonogfp

Recommended Posts

"On This Day in Phonographic History..."

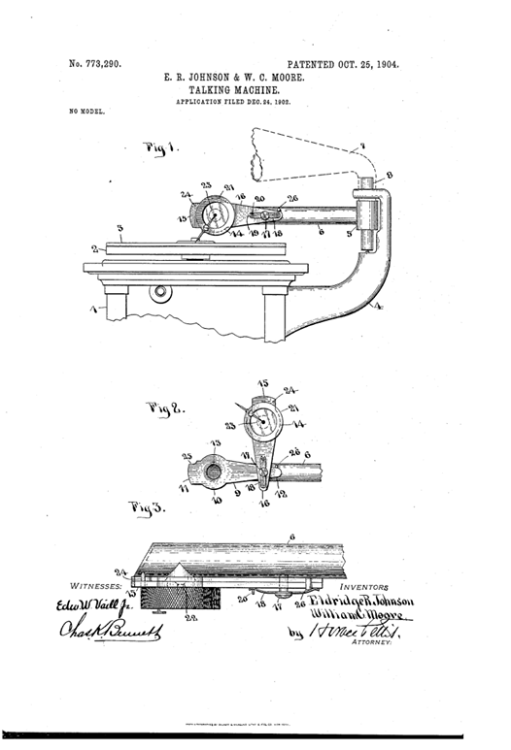

December 24, 1902: Eldridge Johnson and William Moore filed for a U.S. patent on the tubular tone arm that had begun appearing on Victor Talking Machines in October 1902. This was the “Rigid Arm,” which removed the weight of the horn and earlier traveling arm from the record.



October 25, 1904: Eldridge Johnson and William Moore were granted U.S. patent (No.773,290).



#antiquephonographsociety #phonograph #gramophone #antique



1196625309_JohnsonandMoore773290RigidArm.thumb.png.162f511271a82b4f16a375515e1df83c.png

  • Like 3
Link to comment
Share on other sites

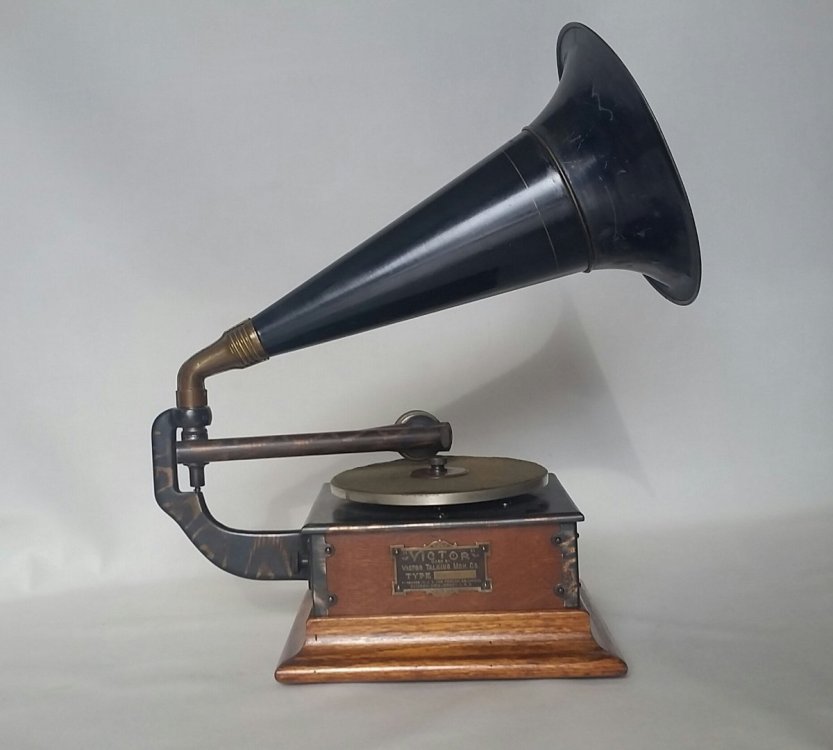

This patent certainly marked a real turning point in disc phonograph design and technology rendering the future of the front mount machines obsolete. I didn't take long for significant improvements to be made.

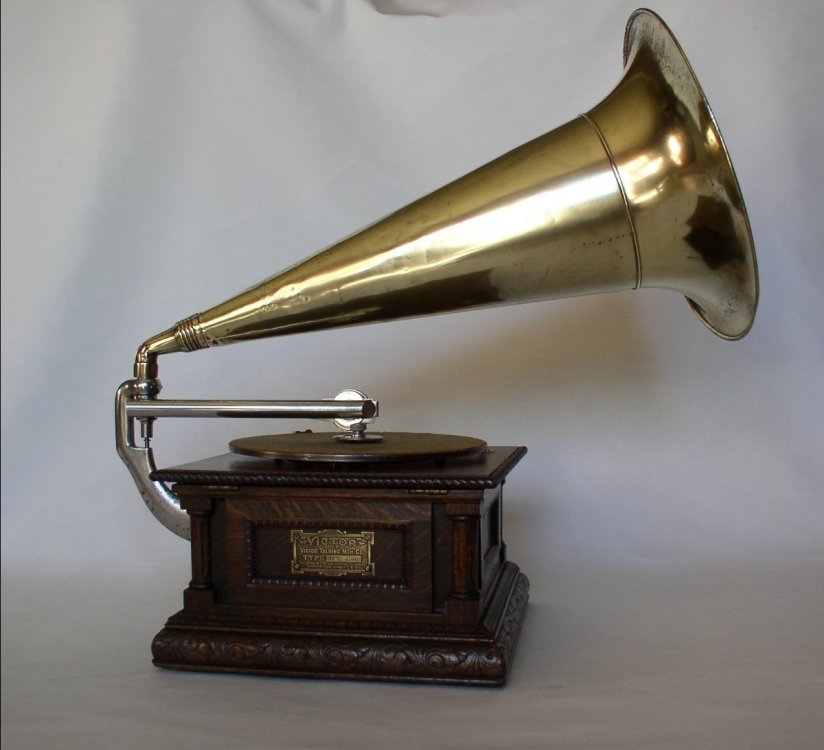

Rigid Arm MS-LR.jpg

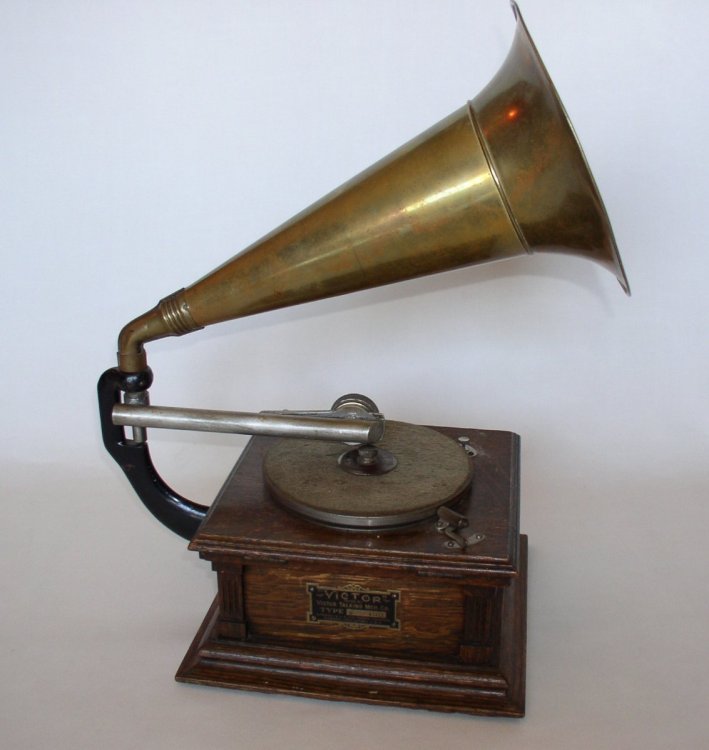

Victor Rigid Arm E-LR.jpg


  • Like 2
Link to comment
Share on other sites

Nice to see different examples. I only have one machine with a rigid arm but one of my favorites. When I bought it I'm not sure I even noticed the arm. I had no internet yet when I bought it so could not look it up. At the time it was my most expensive machine at $950.00 but so happy I spent the money on this machine with a pre dog Victor data plate. I knew nothing about that either.

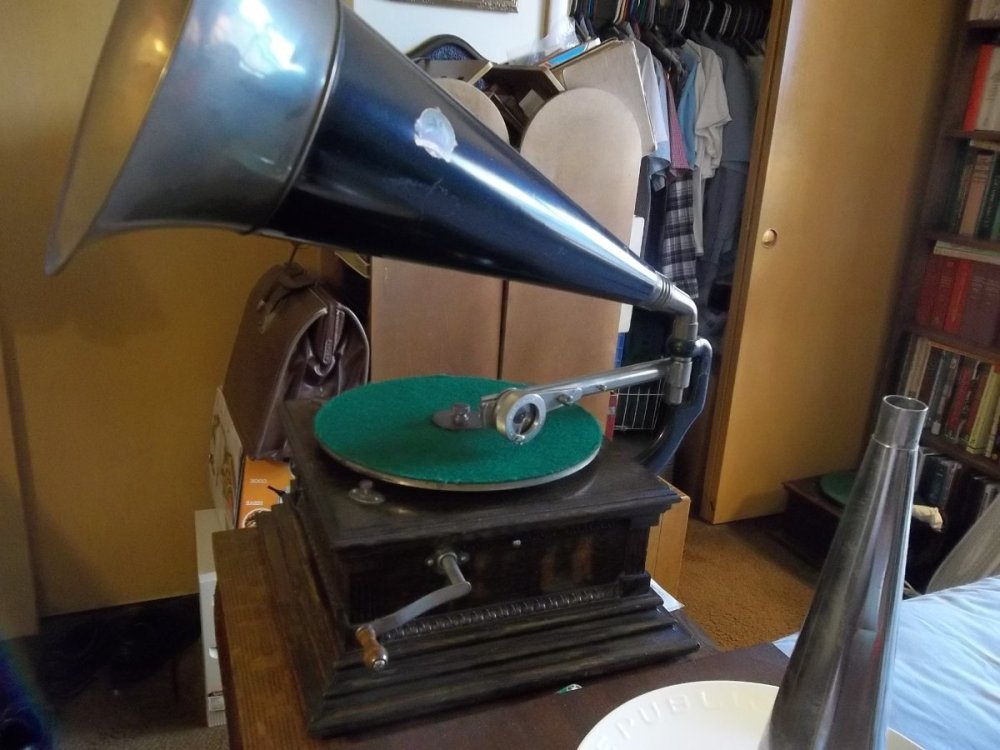

rigid arm work (6).JPG

  • Like 2
Link to comment
Share on other sites

That looks like my rigid arm "M", which I unfortunately traded away for a 15" Symphonion disc music box.  You have some great machines, Neil.

  • Like 1
Link to comment
Share on other sites
