HMV model II

Featured Replies

Well HMV books say model 2 so let's go with that. Nice oak horn with gold lines. It has a Exhibition Junior sound box book says fitted for a short time after July 1916. A nice two spring motor book says those added during the great war period. It had patina(rust) galore so I cleaned it up. I will try to show some before and after 'patina' was removed. ha ha A nice find and so happy to have it. I hope you enjoy looking at it too.

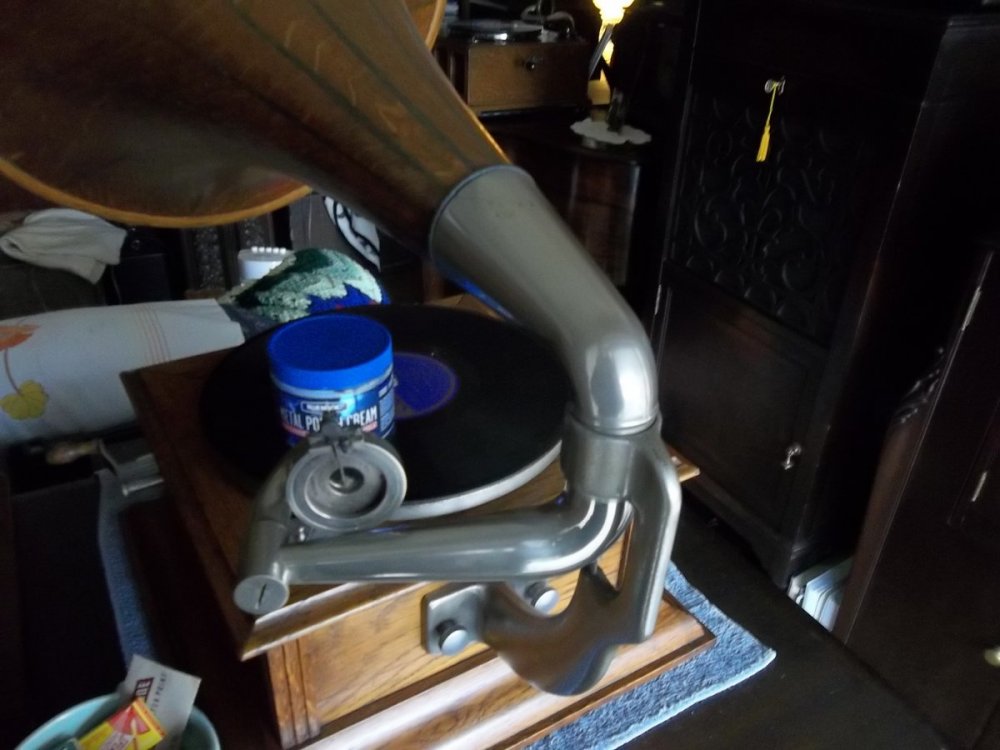

hmv blue magic used (1).JPG

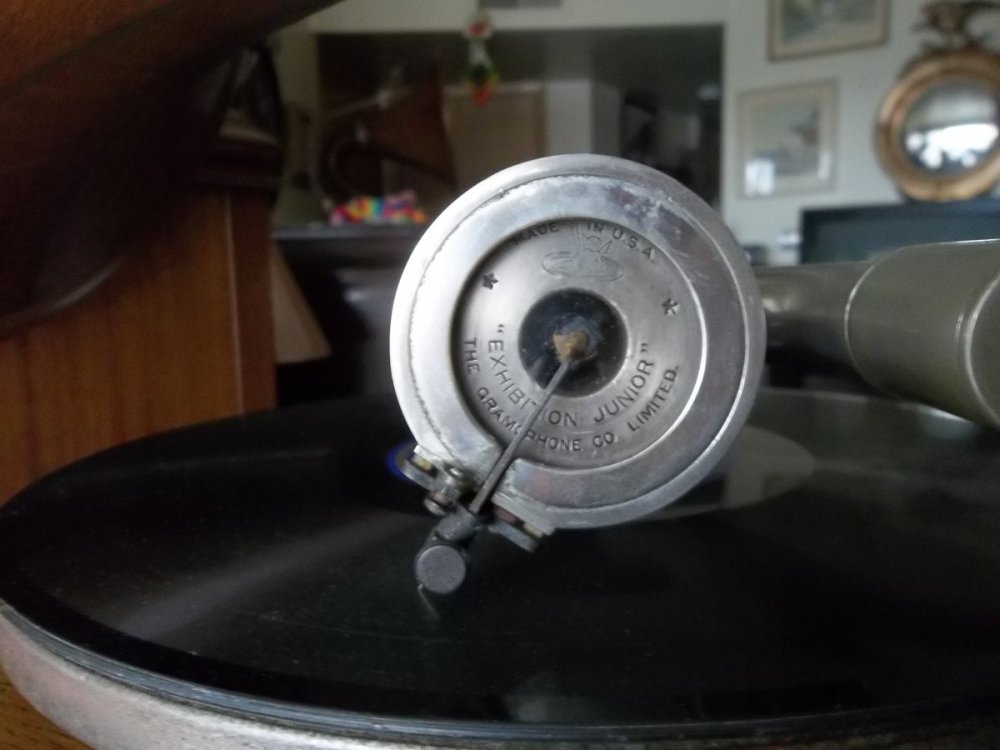

hmv blue magic used (3).JPG

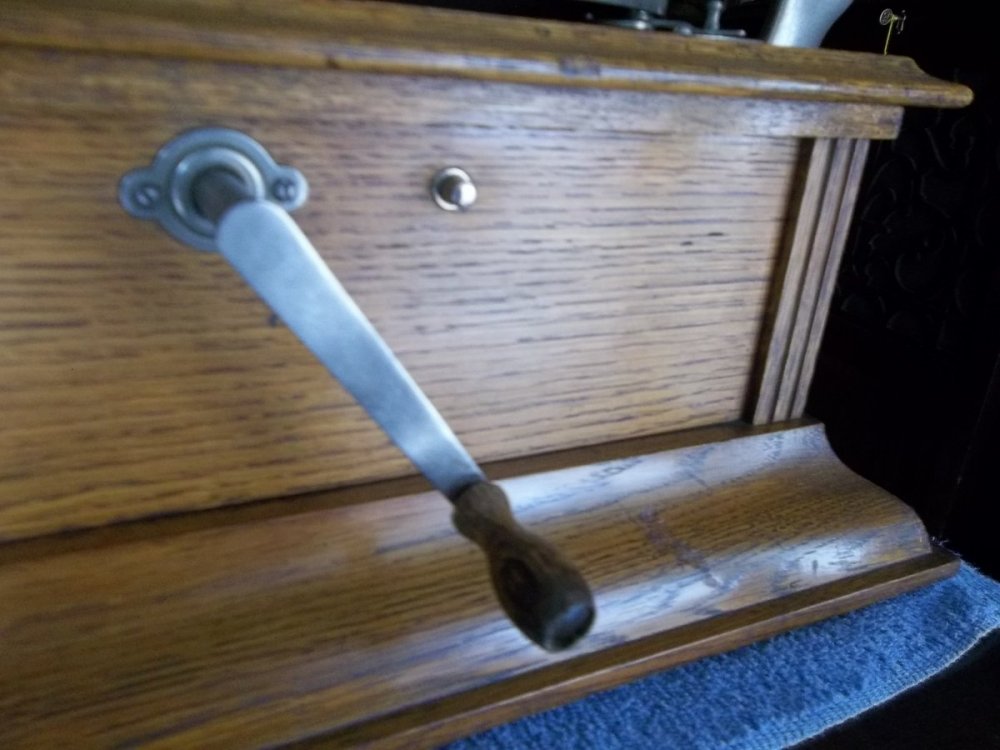

HMV crank cleaned up (1).JPG

hmv crank.jpg

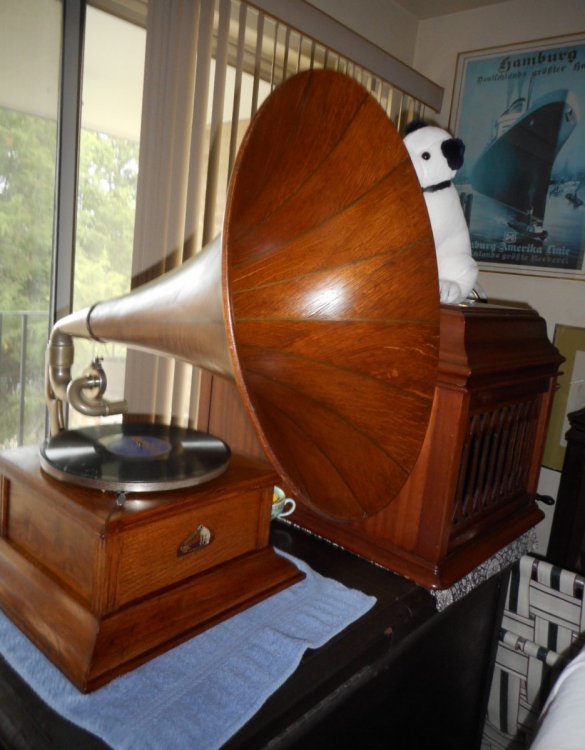

hmv horn and silicone (5).JPG

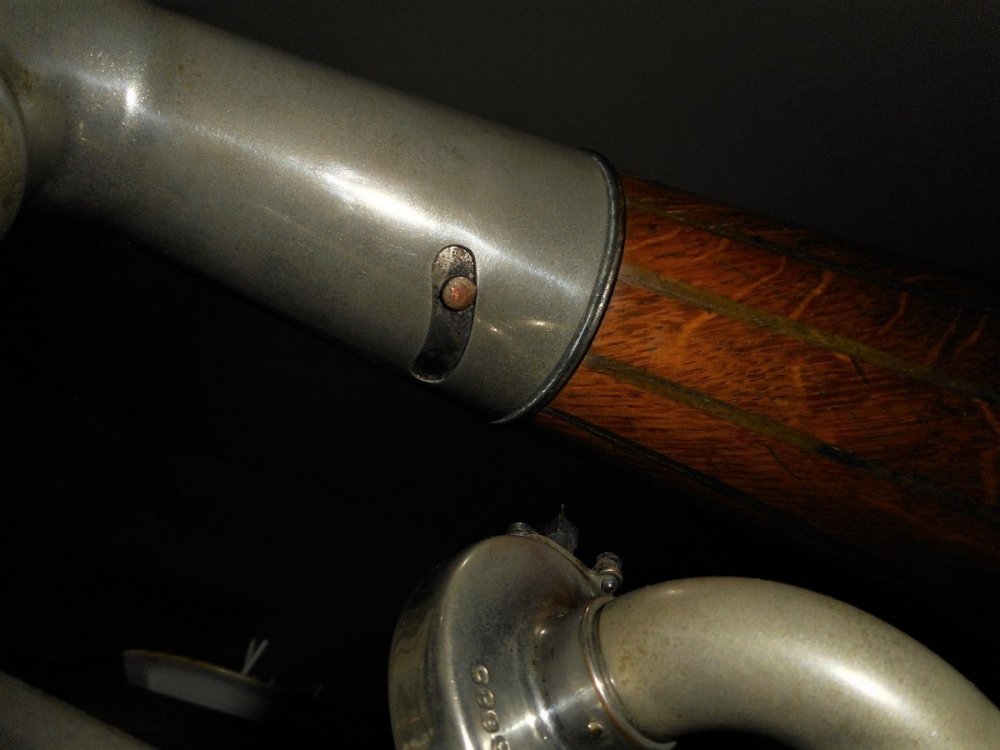

hmv horn and silicone (7).JPG

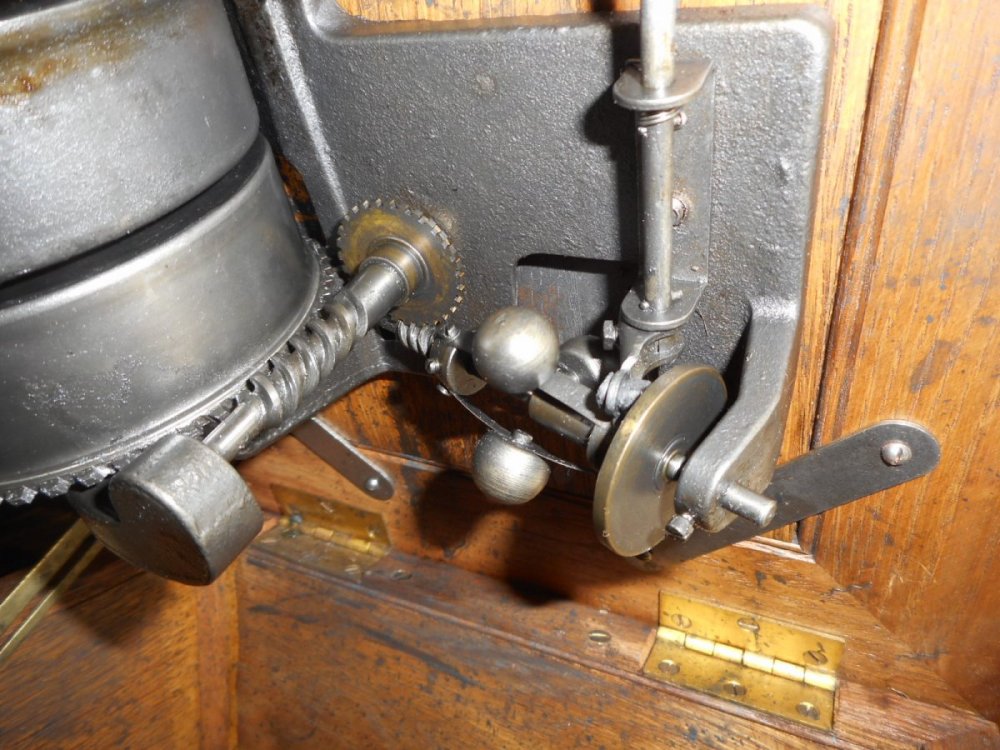

hmv patina (3).JPG

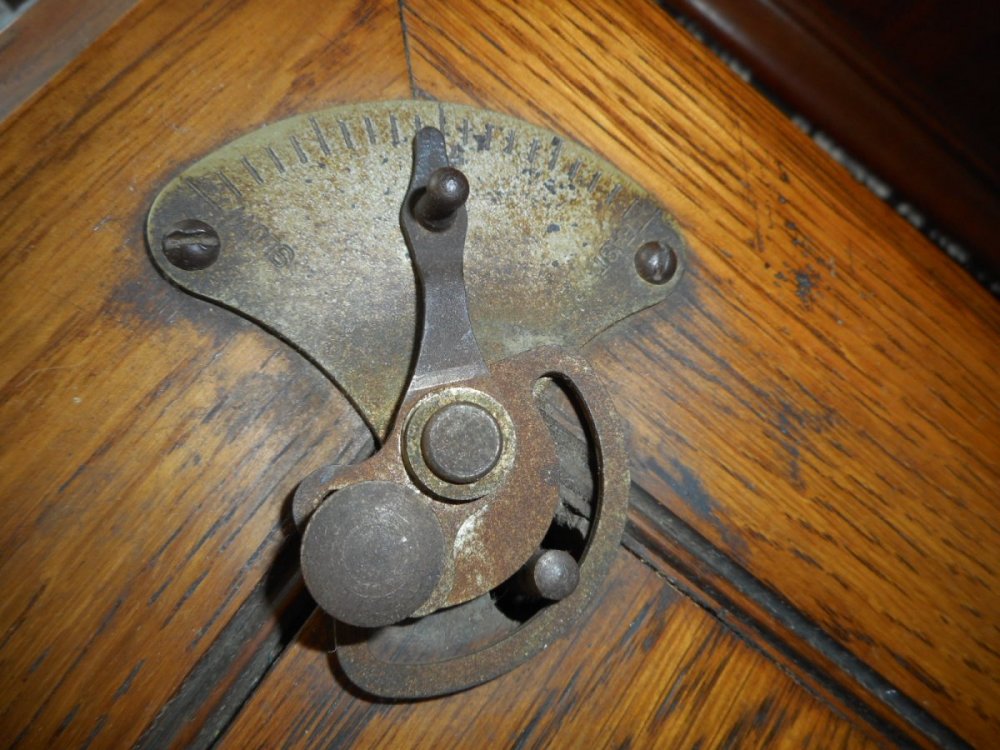

hmv patina (7).JPG

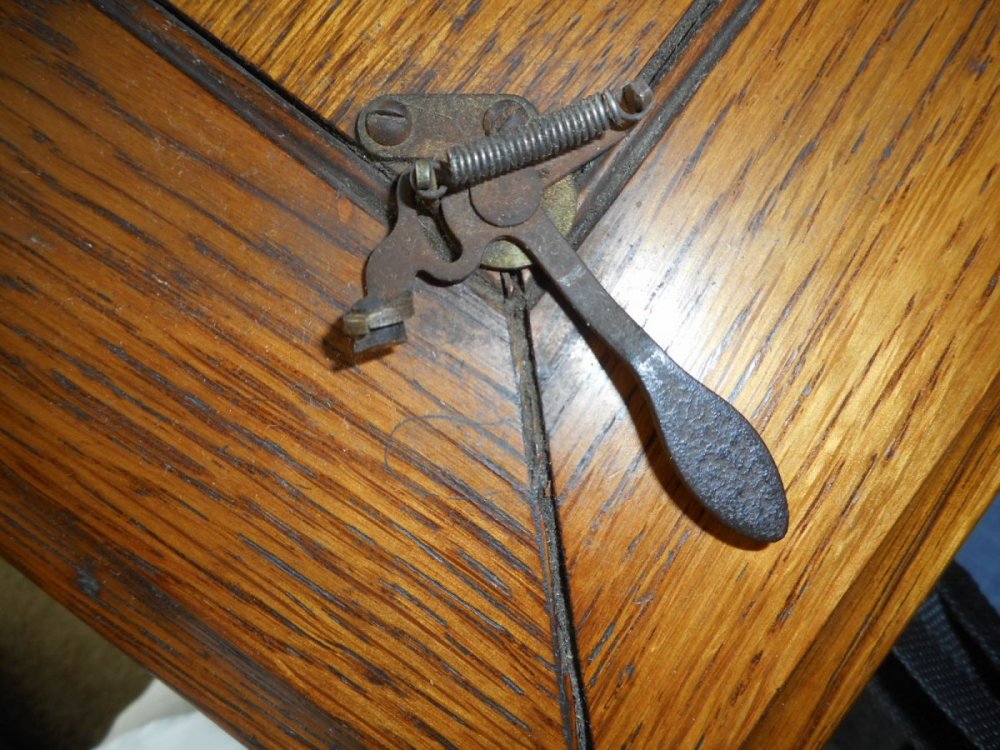

hmv patina (8).JPG

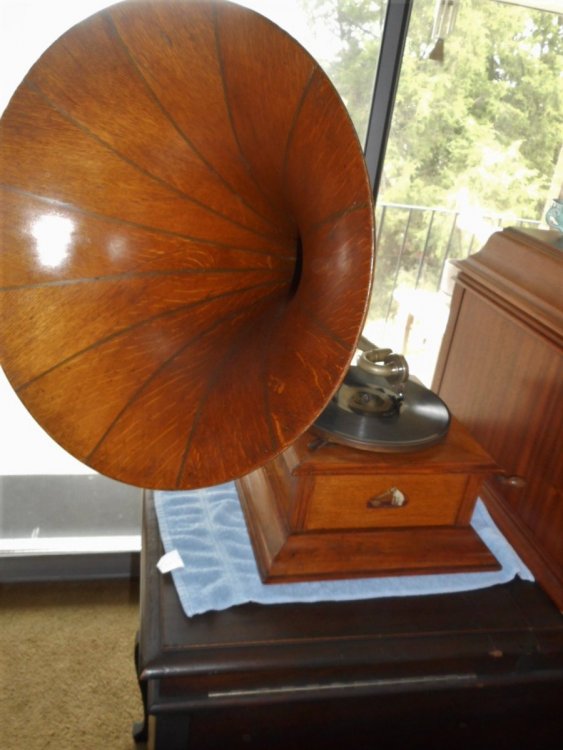

hmv wood horn too.JPG

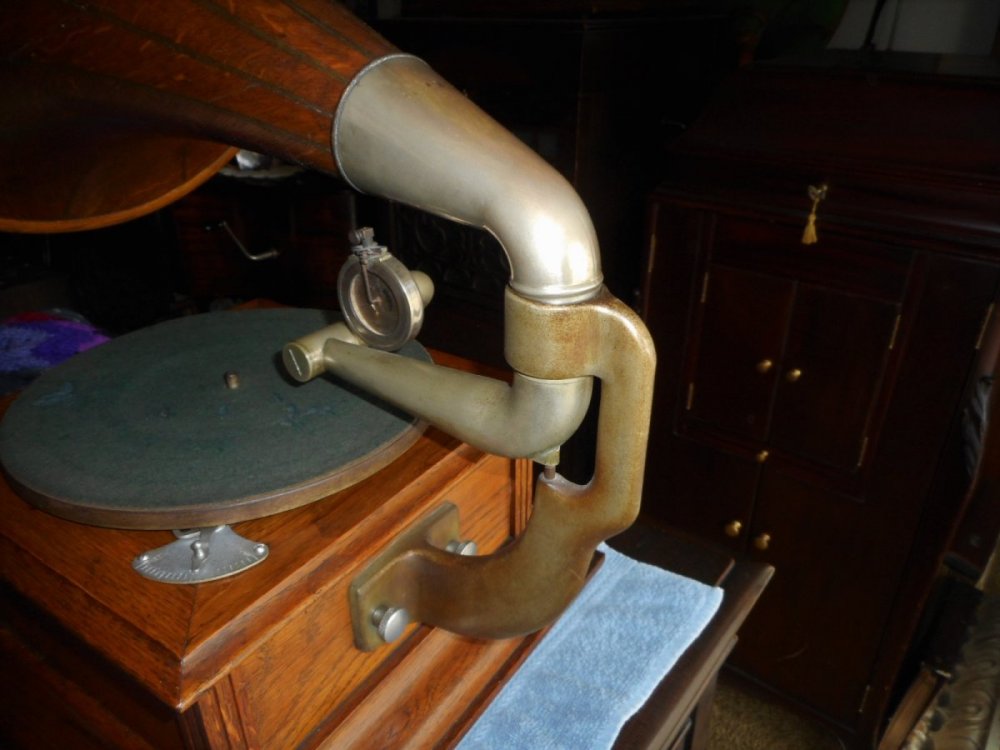

evapo elbow finished (1).JPG

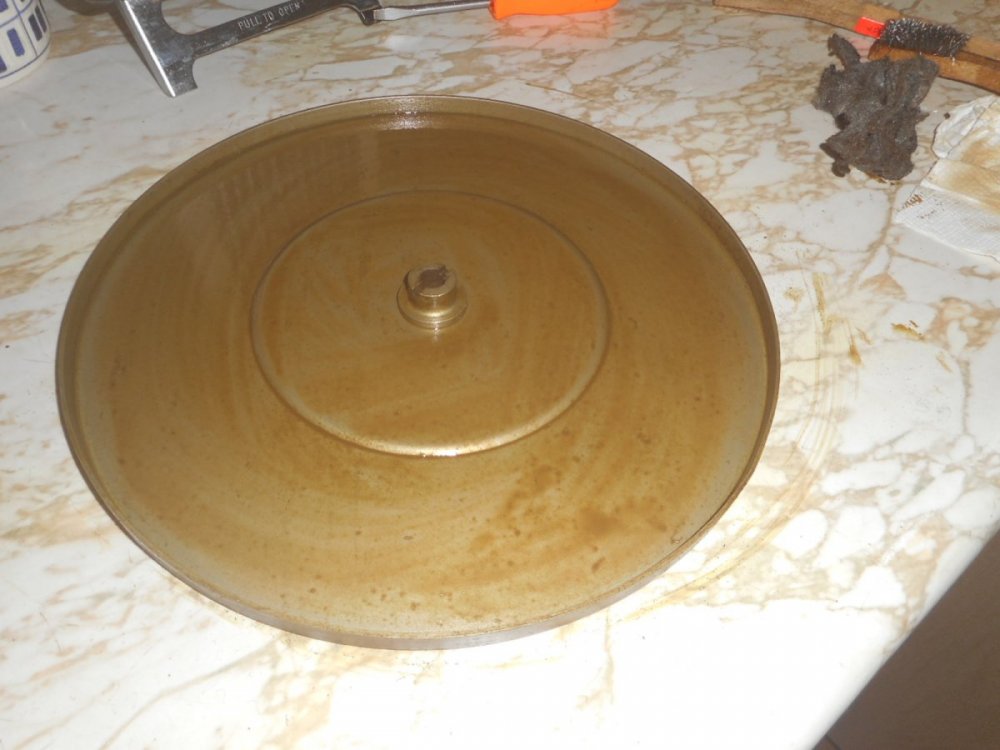

evapo hmv done (3).JPG

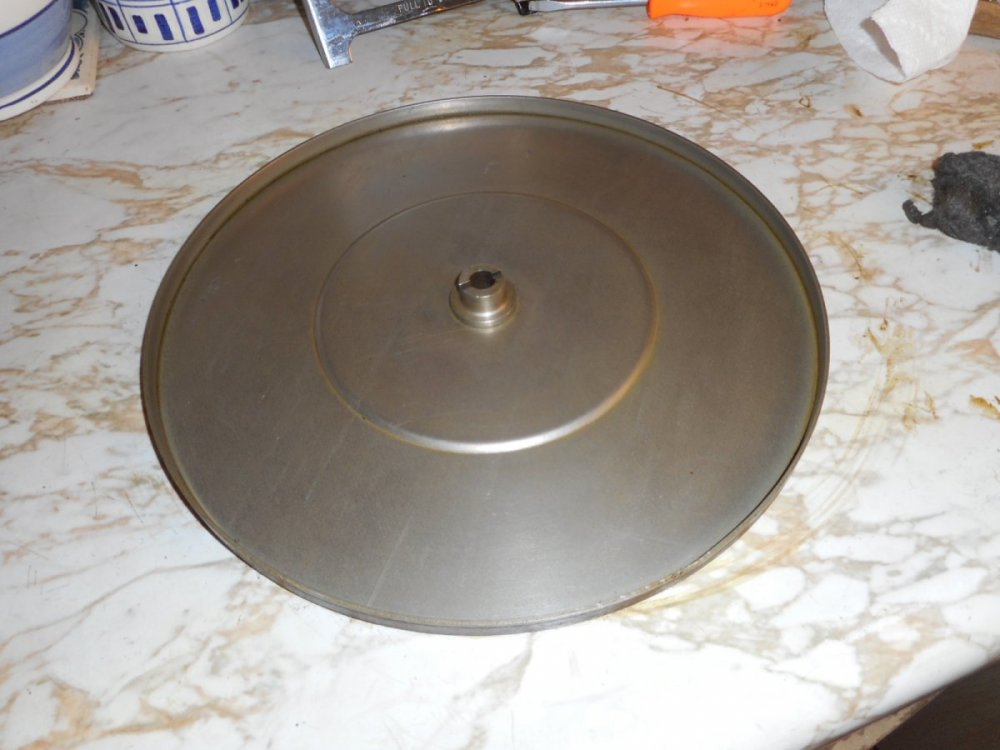

evapo hmv done (4).JPG

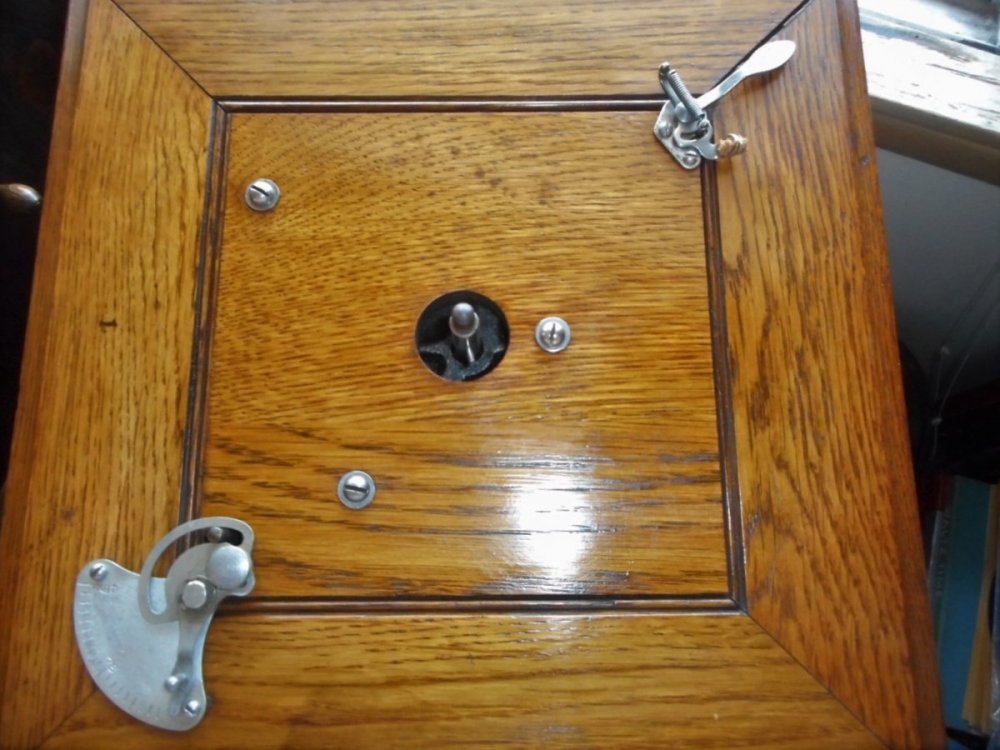

evapo hmv done (9).JPG

evaporust brake test before (2).JPG

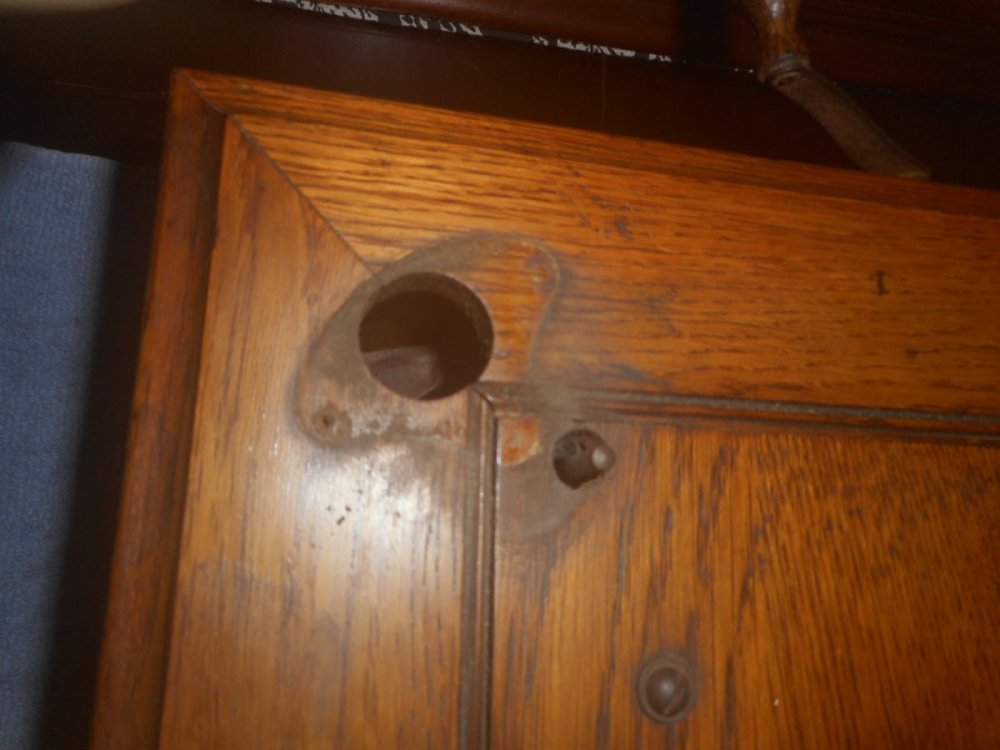

evaporust change (1).JPG

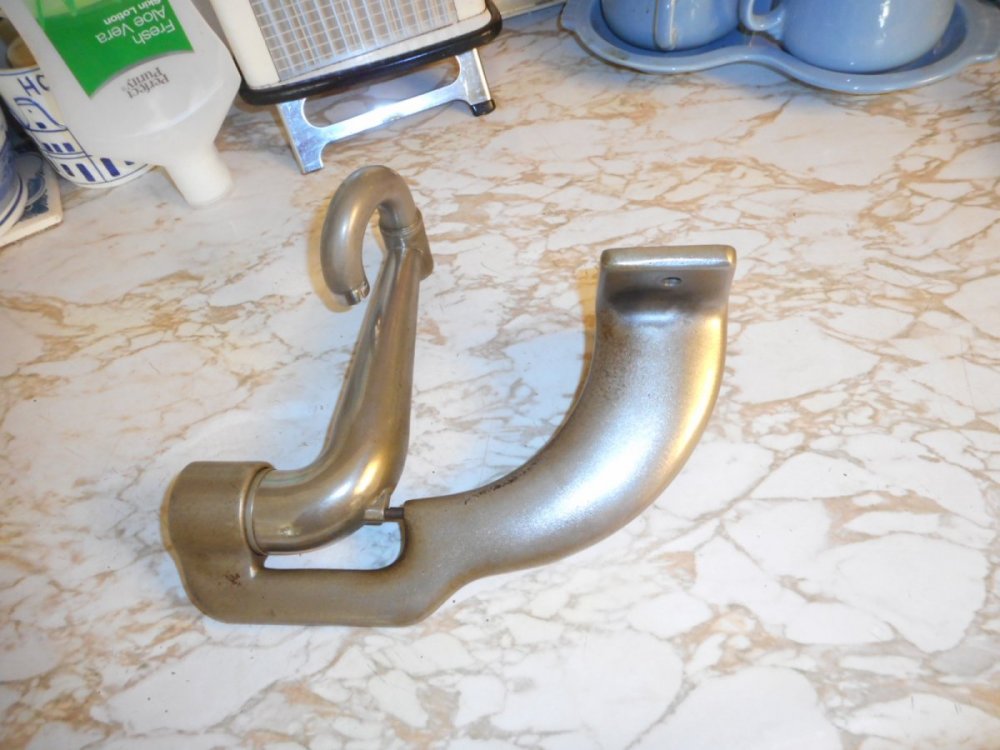

Evapo stuff back bracket afterward (1).JPG

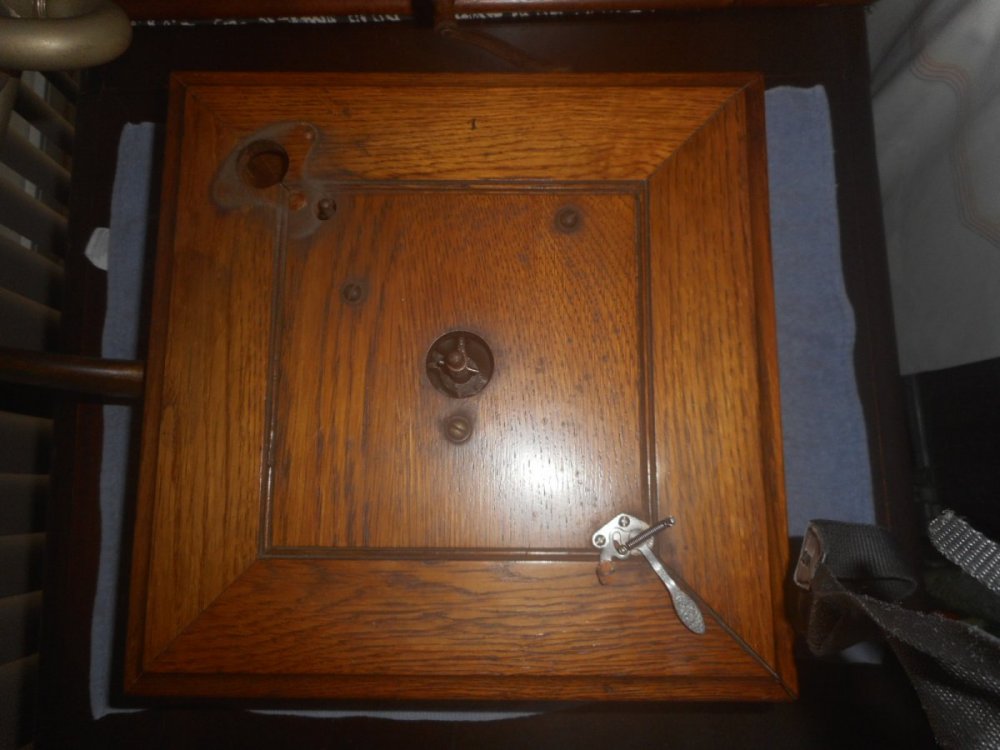

evaporust change (2).JPG

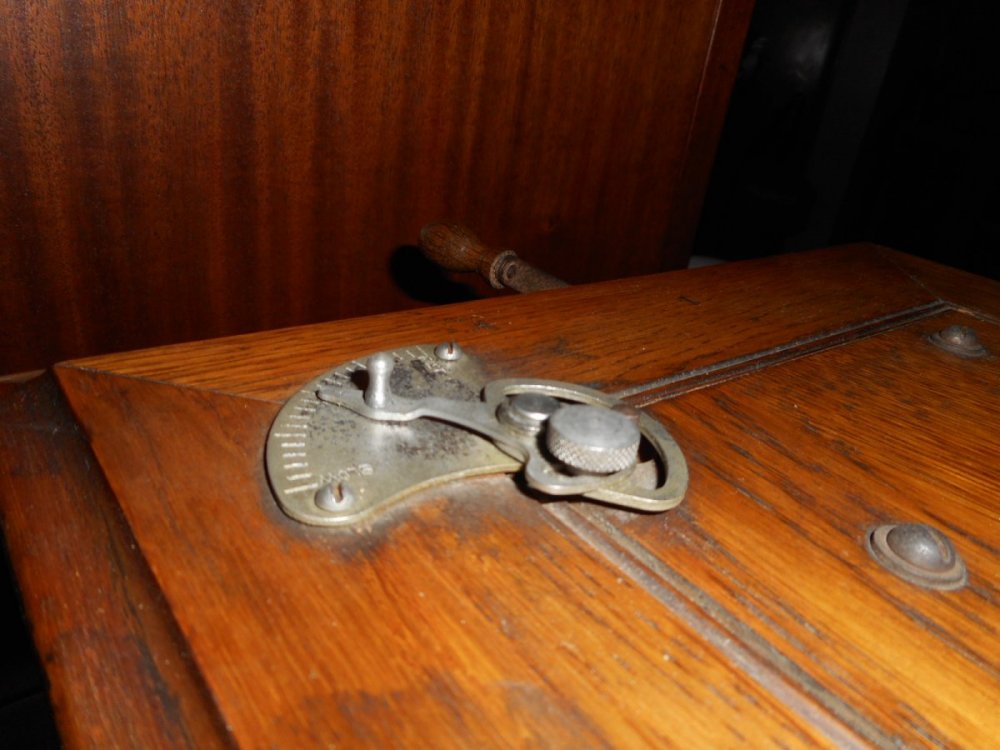

evaporust change (5).JPG

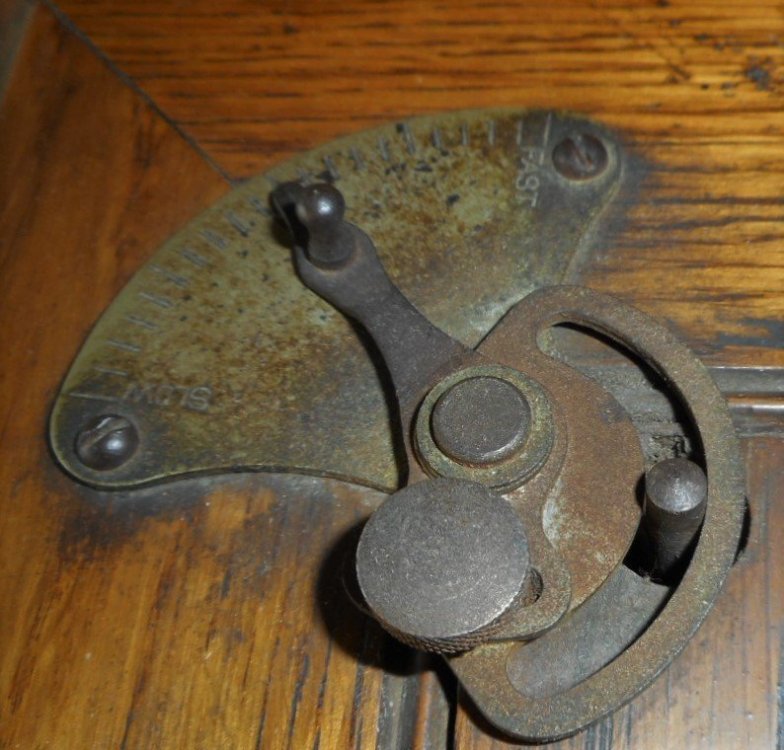

evaporust speed control (2).JPG

  • 4 weeks later...

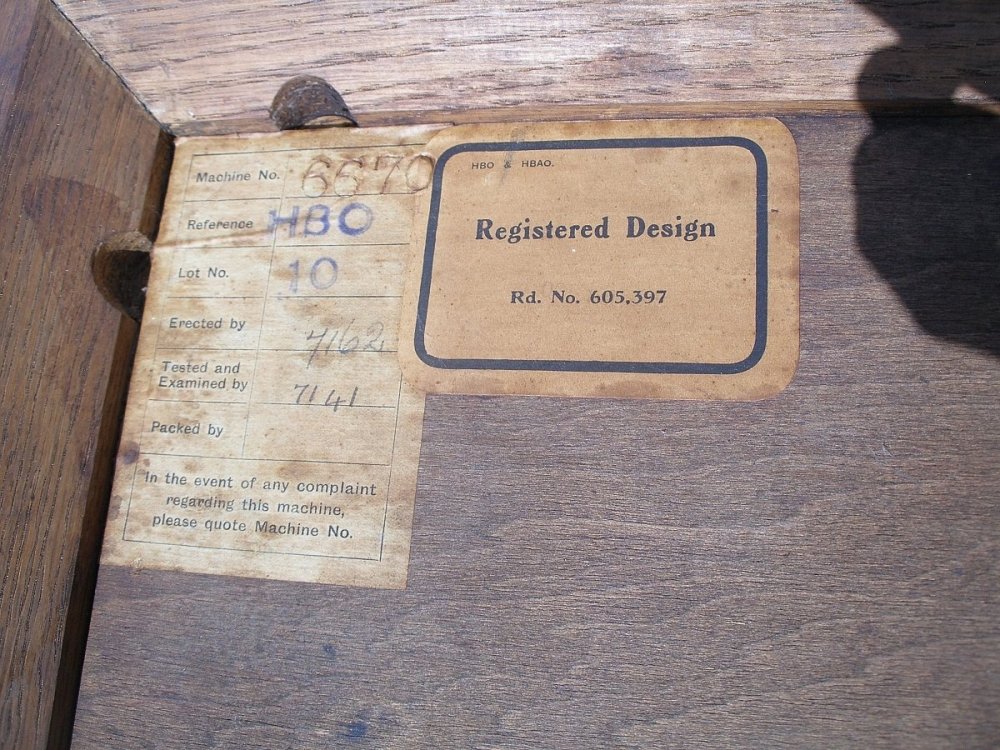

This is not a Model 2, it is a Model B (H.B.O.), shown on page 62 of 'His Master's Gramophone'.  The label on the base appears to have no date stamp, but the double-spring motor and the quadrant speed control equate to others seen with a date of 1915.  The Exhibition Junior soundbox was normal on this model.  The wood horn was not, and is probably earlier; the gold lines are normally found only on early examples (cc. 1911) of the 18-inch oak horn.

Nice job on cleaning up the nickel fittings. They have great patina. Their only original once.



Glenn

  • Author

Christopher thanks for clearing things up. I guess the HBO should have been a clue. I confess I like this horn better then the one shown on page 62. Those machines look so similar plus with this horn no wonder I looked at page 60 by mistake but now after your comment I looked closer and see you are right so thanks.
