Advice on Matching Tone Arm

[Sheraz]

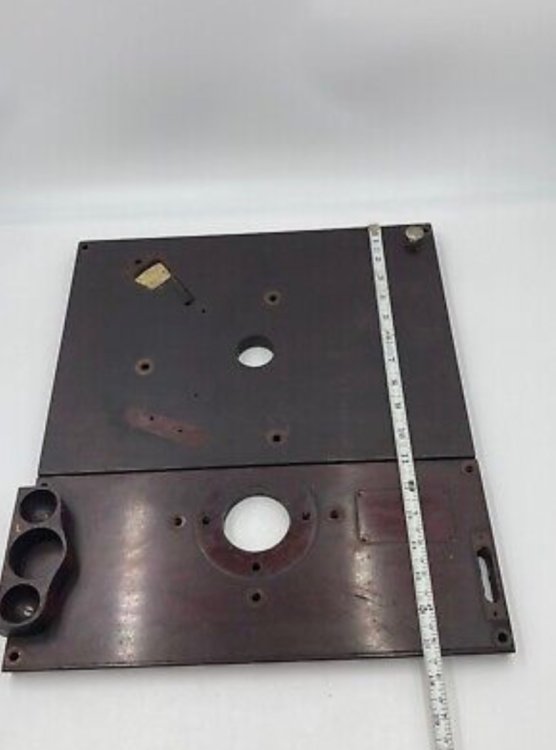

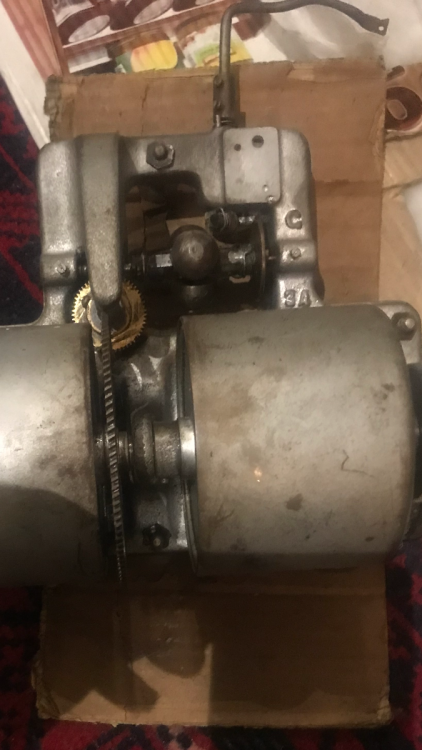

Will you please suggest which type of Victrola tonearm and reproducer should I buy for this machine?. Please also suggest the appropriate Victrola plate indicating the model number for this machine which should I buy for this phonograph. The pictures of the motor board and motor are here so you could suggest.

Please note that the brake I have is the shorter arm type.?

Thanks and regards
Sheraz

[BenL]

Can we see a picture of the whole cabinet?

[Sheraz]

Hello ! I do not have the Cabinet . Just the motor and board with all top stuff except tone arm. Please advise. Thanks

[mattrx]

Do you know if the arm should be acoustic orthophonic or pre-orthophonic.  I have a box full of both and may be able to help.  The serial number/model number of the machine would be a great help.  Measure the center of the tone arm bracket hole to the center of the turntable hole and post it.  I will try to compare this information with the tone arms that I have.  Maybe that will help you.



Matt

[Sheraz]

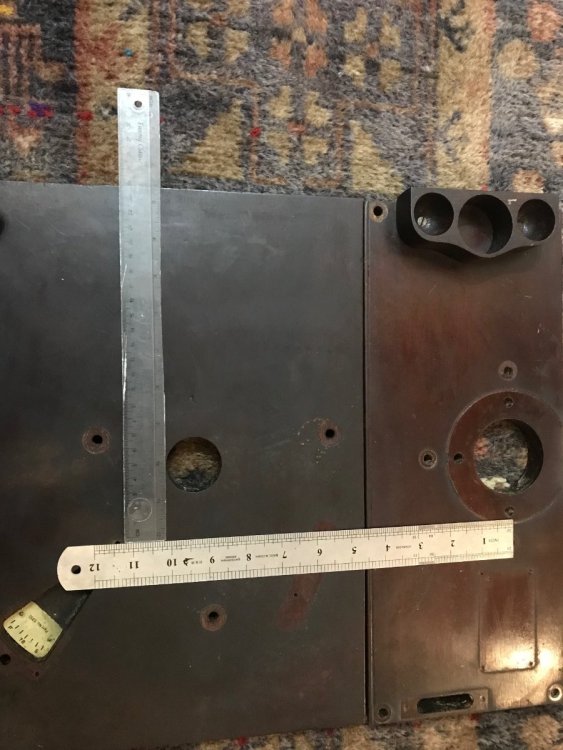

It is pre-orthophonic. Here is the picture with measurements. Please advise. Thanks and regards

sheraz

[mattrx]

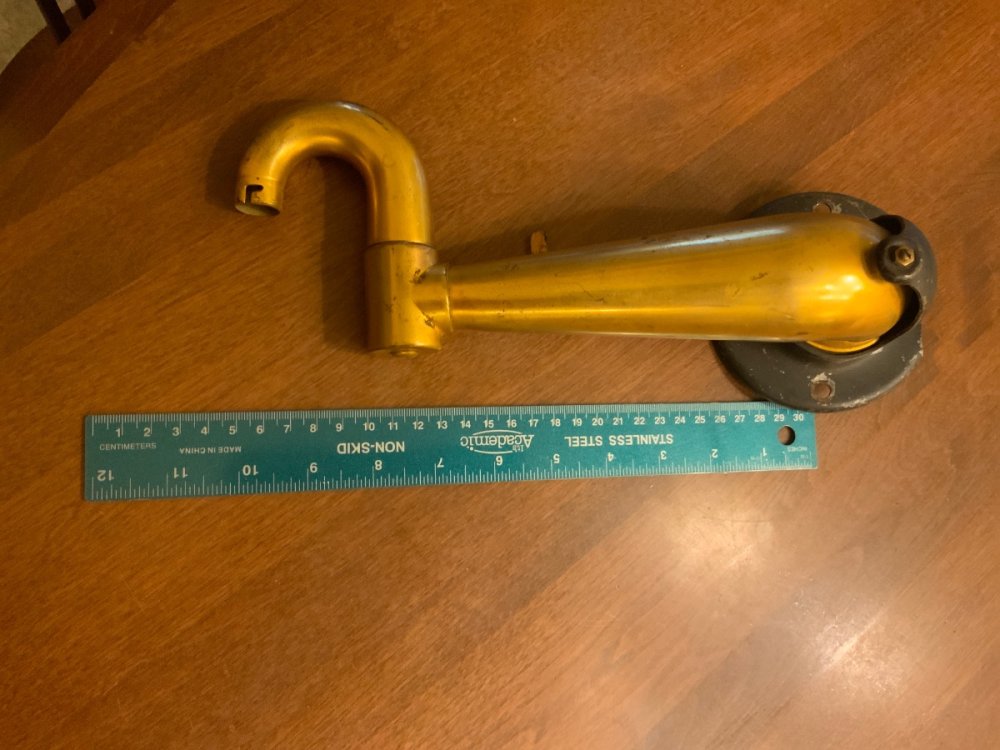

Maybe this one?  The motor board looks 20’s to me, I could be wrong.  Victor was using this “fat” tone arms then.  I probable have the same arm in nickel.



Matt

[mattrx]

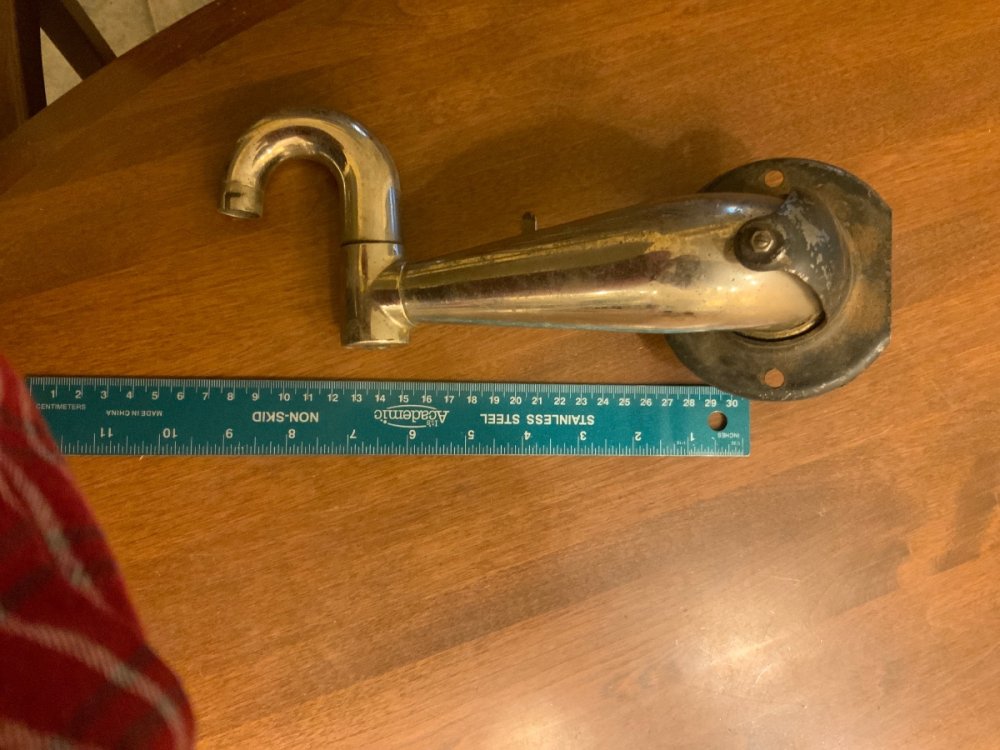

This is also a possibility.



Matt

[Sheraz]

I trust the board with me and all parts on it belongs to a Victrola 260. However it has a four spring motor. It has a short arm brake. Probably this means it will have a long tone arm. Now you can make a better idea of what I need. Thanks and regards
Sheraz

[mattrx]

Pics online of a VV-260 show an arm similar to the nickel finish arm I posted.  With the reproducer installed, the needle should strike the center of the spindle hole.  Take a look at the measurements I have posted and compare to your motor board.



Good luck with your restoration!



Matt
