A 12 inch Edison Needle Type record from 1928!

Featured Replies

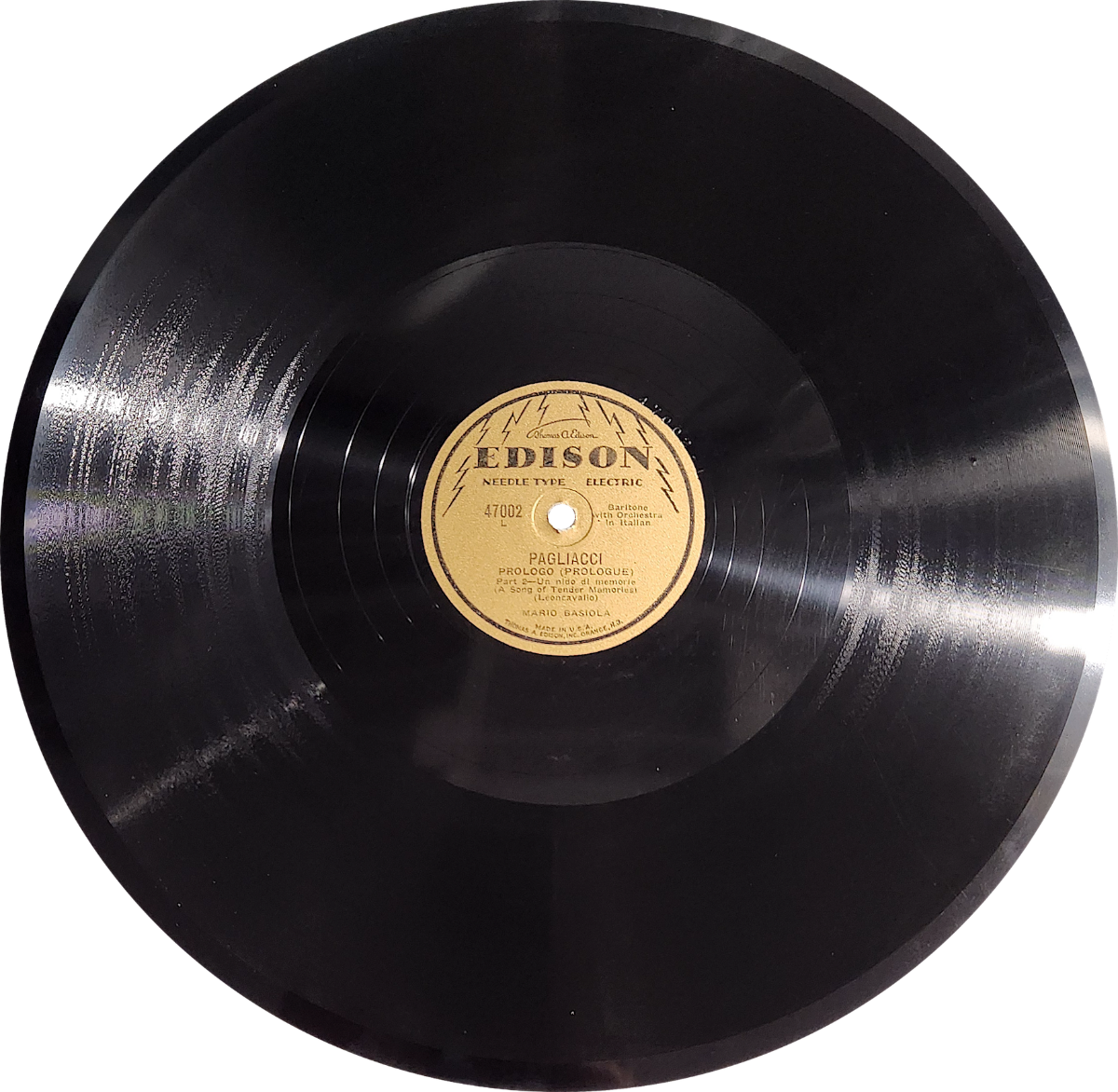

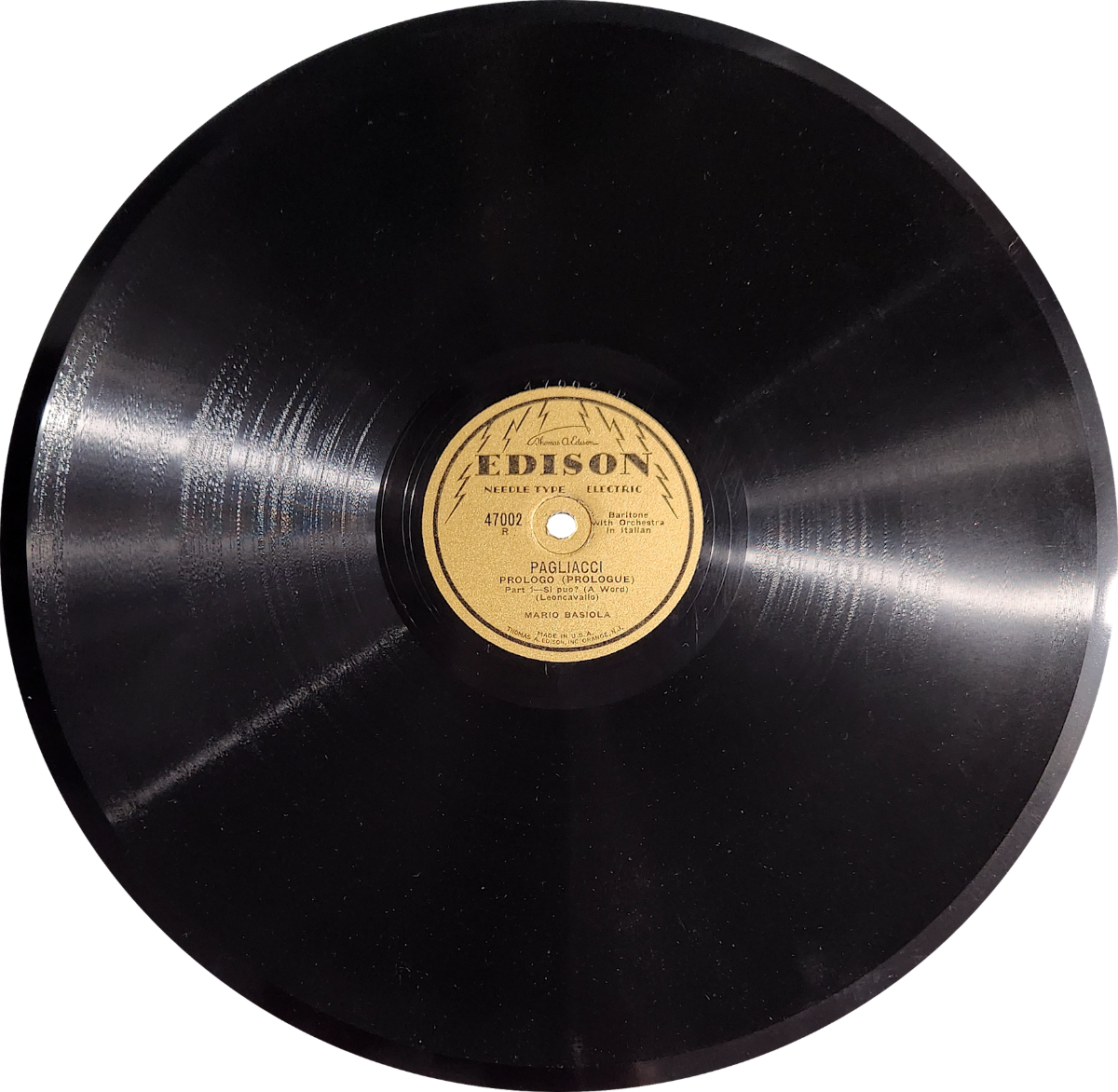

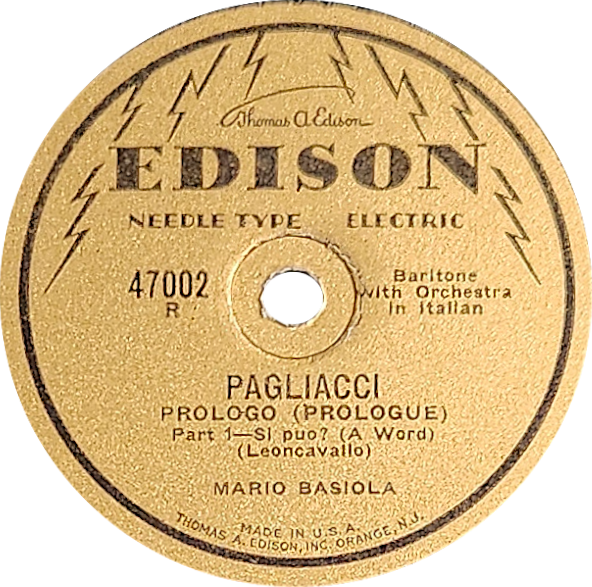

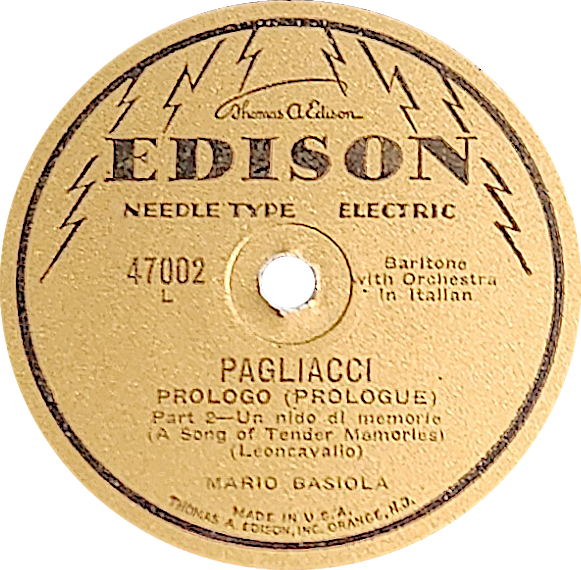

Here is a record as rare as most any I have. It was recorded in late 1928 and likely released in 1929. It's in terrific shape and sounds amazing. Needle Type records from Edison are rare, but a 12 inch Needle Type with a gold record label are super hard to find.





This record was cur simultaneously as a Diamond Disc and Needle Type record. Here are the DAHR links for the two.



Needle Type DAHR Link:

https://adp.library.ucsb.edu/index.php/matrix/detail/2000161489



Diamond Disc DAHR Link:

https://adp.library.ucsb.edu/index.php/matrix/detail/2000159585













  • Author

I also have images of the full size records. They are in such good shape I thought it might be interesting to show them here as well.







You are right Dan.  Very rare record and in excellent condition.  Could you elaborate on how you recorded it and what equipment you used?  Thanks!



  • Author

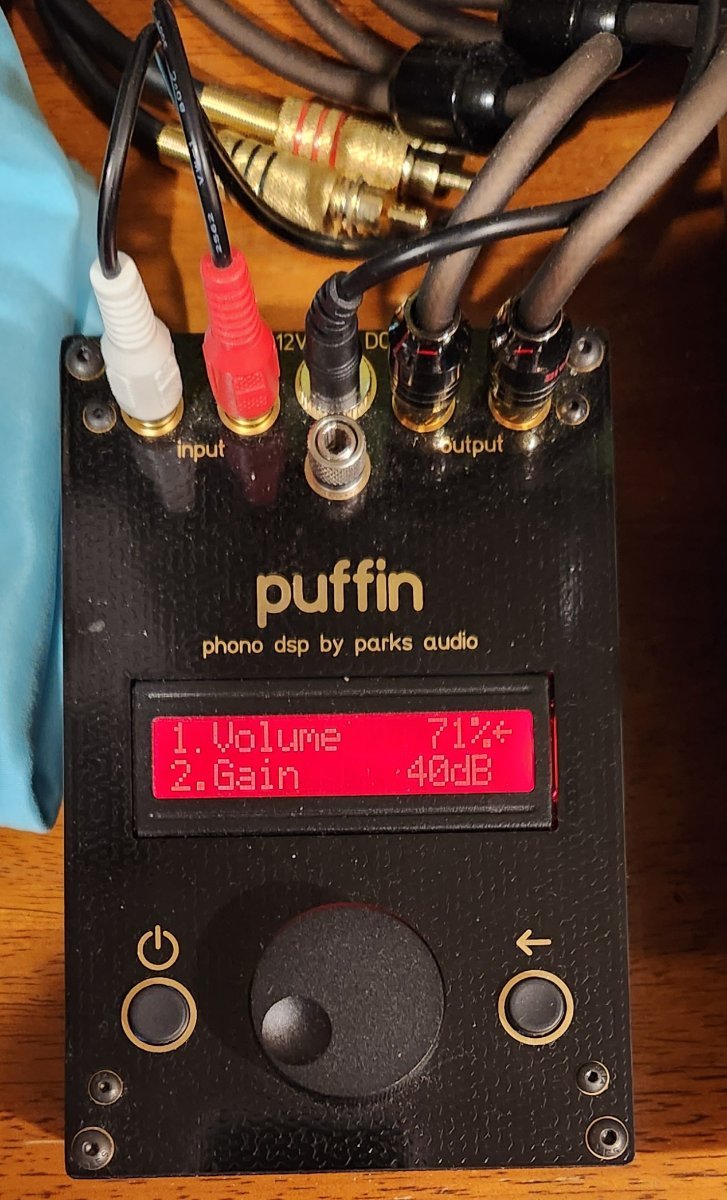

I use a modern turntable with a new old stock stanton 500 cartridge with a 4 mil stylus. I also use a preamp/dsp that is terrific called the Puffin by Parks Audio. It allows for getting the sound just as I like it before transferring. The Puffin has tons of settings that allow for processing both lateral and vertical records with a stereo cartridge.


The Puffin has been replaced by a newer version called the Waxwing that is basically the same thing with more bells and whistles. https://parksaudiollc.com/



On my mac I use Audacity to transfer the recording and I take full advantage of Audacity's Noise Reduction feature to get rid of most of the background noise. I always try to get 2 or 3 seconds of the lead in sound before the music starts to use for Noise Reduction.

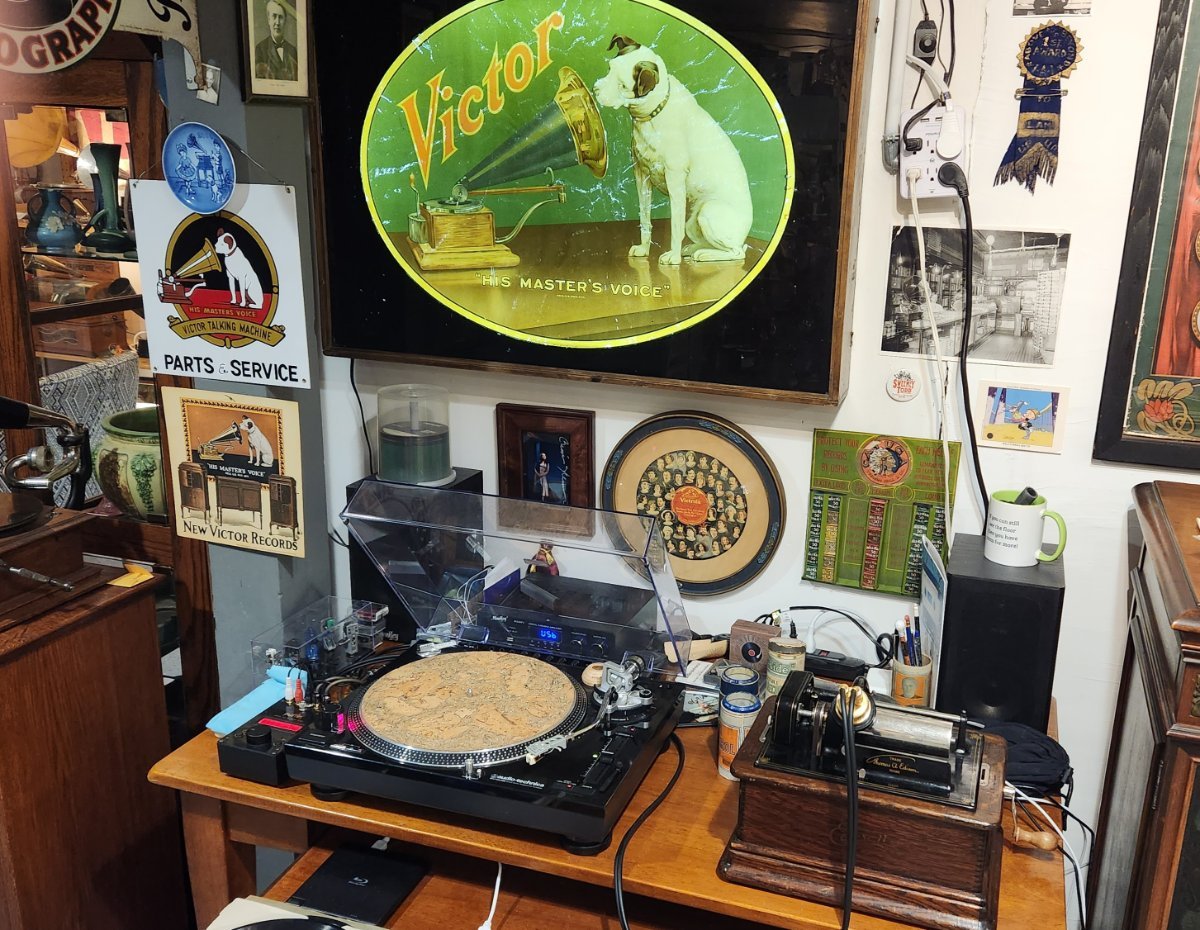

Here is my setup:


1 hour ago, melvind said:

I use a modern turntable with a new old stock stanton 500 cartridge with a 4 mil stylus. I also use a preamp/dsp that is terrific called the Puffin by Parks Audio. It allows for getting the sound just as I like it before transferring. The Puffin has tons of settings that allow for processing both lateral and vertical records with a stereo cartridge.


The Puffin has been replaced by a newer version called the Waxwing that is basically the same thing with more bells and whistles. https://parksaudiollc.com/



On my mac I use Audacity to transfer the recording and I take full advantage of Audacity's Noise Reduction feature to get rid of most of the background noise. I always try to get 2 or 3 seconds of the lead in sound before the music starts to use for Noise Reduction.



Here is my setup:


Well you've certainly got it down.  Is there an amp in there somewhere too?



  • Author

I have really nice stereo equipment elsewhere, but not for this purpose. I bought a cheap little amp and speakers (that sound pretty good) from Amazon a few years ago that let me hear what's going on while I play the records. Nothing to write home about though.



BTW, I also sometime use a very old, perhaps no longer available, program for click removal. It is called Click Repair and will only run in Windows. For some reason it quit working on a mac even though it is self contained JAVA code and should work equally on both. It does the best job of removing clicks that I have found. The feature for that in Audacity is pretty hard to use and is very manual and time consuming.
