Edison Standard (1898 version) instructions!

[ken53092]

A Facebook friend posted this wonderful PDF of the operating instructions that came with the very early Edison Standard phonographs! What a wonderful gift to all collectors!  I have yet to see it posted here, so I decided to post it myself for the benefit of those in need or those who are just interested! MANY thanks to fellow collector Michael Sims!

Edison Standard instructions.pdf

[ken53092]

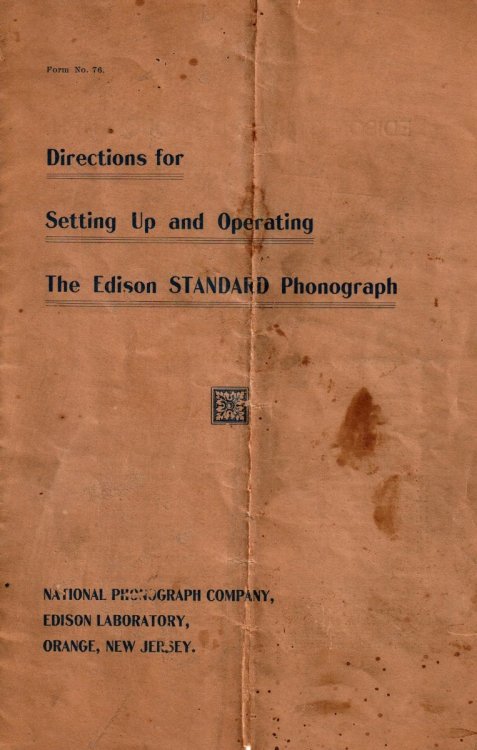

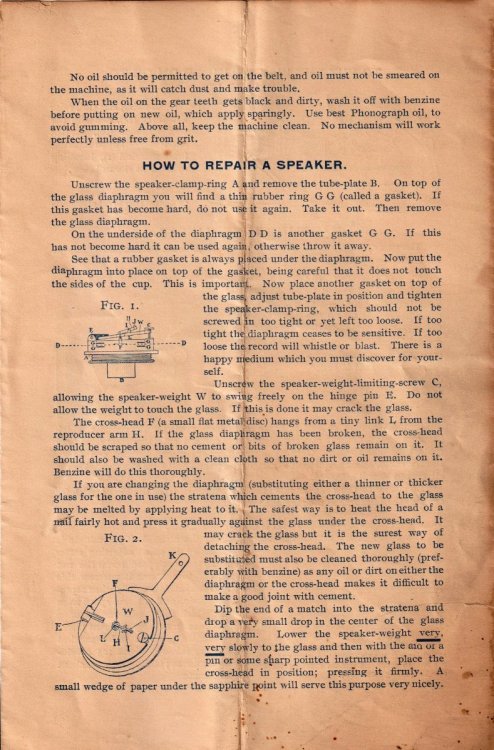

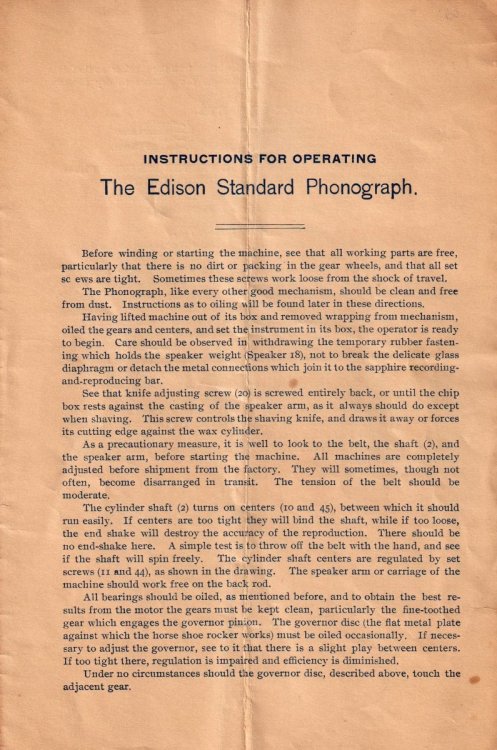

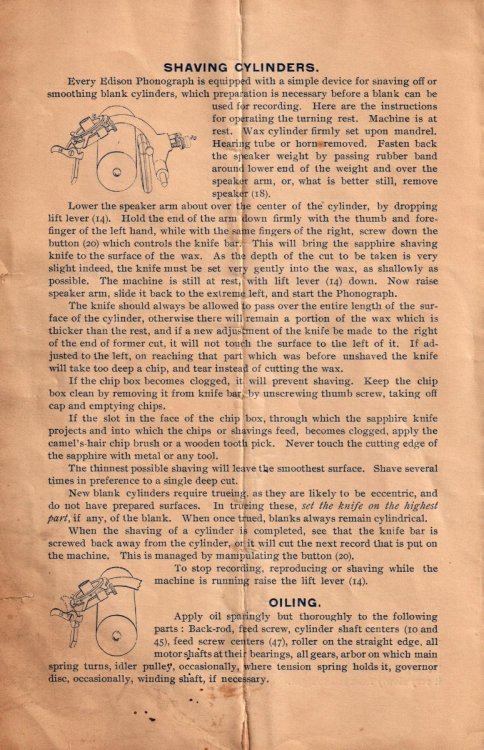

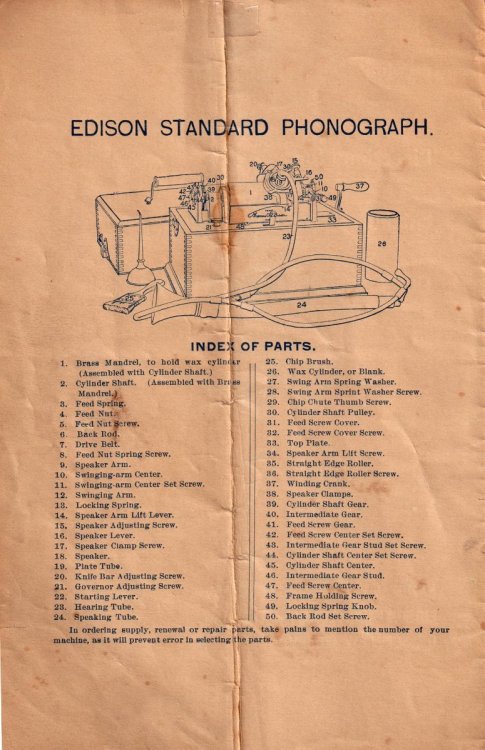

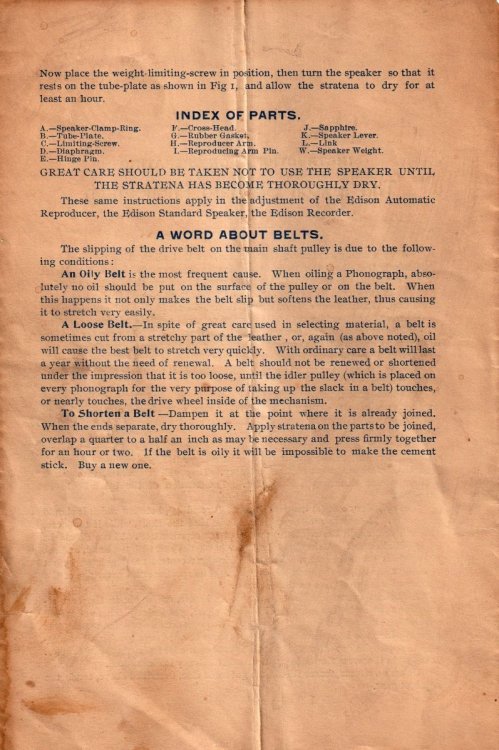

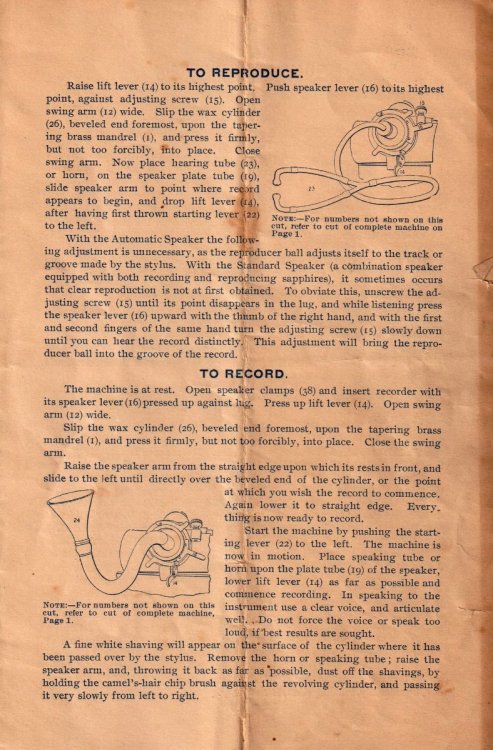

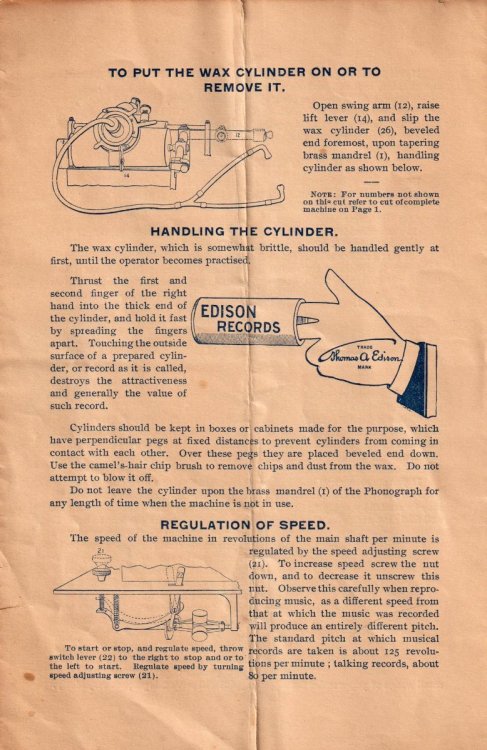

Here are pics of the pdf if you'd rather view the instructions here.

[RodPickett]

Thank you for posting.   These are for the rare short-lived Standard Speaker.  One slip of the adjusting arm and the cutting stylus is chewing your expensive wax cylinder.

[Valecnik]

On 7/7/2023 at 8:30 PM, RodPickett said:

Thank you for posting.   These are for the rare short-lived Standard Speaker.  One slip of the adjusting arm and the cutting stylus is chewing your expensive wax cylinder.

Great piece of literature Ken.  Thanks for sharing.



I've got a couple of those Standard Speakers on an Early Standard and on a Class M.   You are dead right RodPickett.  The Automatic was a huge improvement in practicality and also sound quality.
